4. Sync data to Cloudflare

In this step, you’re going to introduce a sync backend. This sync backend will:

Have a “live connection” (via WebSockets) to all the clients that are running your app.
Propagate events to all other clients whenever a particular client emits an event.

Notice how you’ll achieve this by only changing the data layer of your application!

You won’t need to touch the code that you’ve already written in main.tsx and App.tsx—all the syncing is handled by LiveStore under the hood without you needing to worry about it in your application code.

You’re going to implement the sync backend using Cloudflare Workers and Durable Objects, using the @livestore/sync-cf package.

Install the Cloudflare sync provider package

Run the following command in your terminal:

bun
pnpm

bun add @livestore/sync-cf@0.4.0-dev.14

pnpm add @livestore/sync-cf@0.4.0-dev.14

Create the sync backend

Now, create a new sync directory and a new file for the sync backend:

mkdir src/sync
touch src/sync/client-ws.ts

Now, add the following code to it:

import { makeDurableObject } from '@livestore/sync-cf/cf-worker'
import type { CfTypes } from '@livestore/sync-cf/cf-worker'
import * as SyncBackend from '@livestore/sync-cf/cf-worker'

export class SyncBackendDO extends makeDurableObject({
  onPush: async (message, context) => {
    console.log('client-ws.ts: onPush', message, context)
  },
  onPull: async (message, context) => {
    console.log('client-ws.ts: onPull', message, context)
  },
}) {}

export default {
  async fetch(request: CfTypes.Request, _env: SyncBackend.Env, ctx: CfTypes.ExecutionContext) {
    const searchParams = SyncBackend.matchSyncRequest(request)
    console.log('client-ws.ts: fetch in  with searchParams', searchParams)
    if (searchParams !== undefined) {
      return SyncBackend.handleSyncRequest({
        request,
        searchParams,
        ctx,
        syncBackendBinding: 'SYNC_BACKEND_DO',
      })
    }

    return new Response('Not Found', { status: 404 })
  },
}

This code will be deployed as a Durable Object (think of it as a “Cloudflare Worker with WebSocket capabilities and attached storage”).

In this tutorial, you won’t need to go beyond the following basic boilerplate code for syncing.

However, in more advanced scenarios, there are ways for you to hook into the connection between your client apps and the sync backend. This could e.g. be useful when your app requires authentication and you need to send along an auth token.

Next, you need to slightly modify the code for your LiveStore web worker in /src/livestore/livestore.worker.ts:

import { makeWorker } from '@livestore/adapter-web/worker'
import { makeWsSync } from '@livestore/sync-cf/client'

import { schema } from './schema.ts'

makeWorker({
  schema,
  sync: {
    backend: makeWsSync({ url: `${location.origin}/sync` }),
  }
})

Finally, you need to update your wrangler.toml to ensure Vite and Cloudflare know about the new sync backend:

name = "livestore-todo-app"
compatibility_date = "2024-10-28"
main = "./src/sync/client-ws.ts"
compatibility_flags = [
  "nodejs_compat",
]

[observability]
enabled = true

[[durable_objects.bindings]]
name = "SYNC_BACKEND_DO"
class_name = "SyncBackendDO"

[[migrations]]
tag = "v1"
new_sqlite_classes = ["SyncBackendDO"]

Here’s a quick rundown of the changes:

main: Since you’re now introducing a “backend”, your app needs to be reconfigured. It now has a dedicated entry point in ./src/sync/client-ws.ts. When your Worker receives a request, this file’s exported handlers are executed. In your case, it points to the WebSocket sync backend implementation.
durable_objects.bindings: This configures the bindings for your Durable Object. You’ll be able to inspect it in the Cloudflare Dashboard by its name SYNC_BACKEND_DO.
migrations: Whenever you introduce a new Durable Object that supports SQLite storage (or update an existing one), you need to add a migration referencing the new or updated Durable Object class.

You’re now ready to run and deploy the app:

bun
pnpm

bun run deploy

pnpm run deploy

Expand to view the expected output

✗ pnpm run deploy

> livestore-todo-app@0.0.0 deploy /Users/nikolasburk/Projects/LiveStore/plain-react-tutorial/livestore-todo-app
> pnpm run build && wrangler deploy


> livestore-todo-app@0.0.0 build /Users/nikolasburk/Projects/LiveStore/plain-react-tutorial/livestore-todo-app
> tsc -b && vite build

vite v7.1.12 building SSR bundle for production...
✓ 1085 modules transformed.
dist/livestore_todo_app/.vite/manifest.json      0.16 kB
dist/livestore_todo_app/wrangler.json            1.37 kB
dist/livestore_todo_app/index.js             1,021.14 kB
✓ built in 1.31s
vite v7.1.12 building for production...
✓ 1119 modules transformed.
dist/client/index.html                               0.47 kB │ gzip:   0.30 kB
dist/client/assets/make-shared-worker-CbM93UVL.js  363.01 kB
dist/client/assets/livestore.worker-DbNV_so_.js    594.87 kB
dist/client/assets/wa-sqlite-CLgeTS2u.wasm         618.93 kB │ gzip: 303.78 kB
dist/client/assets/index-DNxhg8nM.css               11.76 kB │ gzip:   3.12 kB
dist/client/assets/index-BhsI_Uw7.js               760.04 kB │ gzip: 238.67 kB

(!) Some chunks are larger than 500 kB after minification. Consider:
- Using dynamic import() to code-split the application
- Use build.rollupOptions.output.manualChunks to improve chunking: https://rollupjs.org/configuration-options/#output-manualchunks
- Adjust chunk size limit for this warning via build.chunkSizeWarningLimit.
✓ built in 4.29s

 ⛅️ wrangler 4.45.1
───────────────────
Using redirected Wrangler configuration.
 - Configuration being used: "dist/livestore_todo_app/wrangler.json"
 - Original user's configuration: "wrangler.toml"
 - Deploy configuration file: ".wrangler/deploy/config.json"
🌀 Building list of assets...
✨ Read 8 files from the assets directory /Users/nikolasburk/Projects/LiveStore/plain-react-tutorial/livestore-todo-app/dist/client
🌀 Starting asset upload...
🌀 Found 4 new or modified static assets to upload. Proceeding with upload...
+ /index.html
+ /assets/index-BhsI_Uw7.js
+ /assets/index-DNxhg8nM.css
+ /assets/livestore.worker-DbNV_so_.js
Uploaded 1 of 4 assets
Uploaded 2 of 4 assets
Uploaded 4 of 4 assets
✨ Success! Uploaded 4 files (3 already uploaded) (4.31 sec)

Total Upload: 997.21 KiB / gzip: 208.73 KiB
Worker Startup Time: 47 ms
Your Worker has access to the following bindings:
Binding                                  Resource
env.SYNC_BACKEND_DO (SyncBackendDO)      Durable Object

Uploaded livestore-todo-app (17.72 sec)
Deployed livestore-todo-app triggers (9.82 sec)
  https://livestore-todo-app.nikolas-burk.workers.dev
Current Version ID: 8860dd68-6082-4da9-9407-dea670cd8b23

Feel free to test the new behaviour locally or using the deployed version. This time, data syncing will work across browsers and even devices!

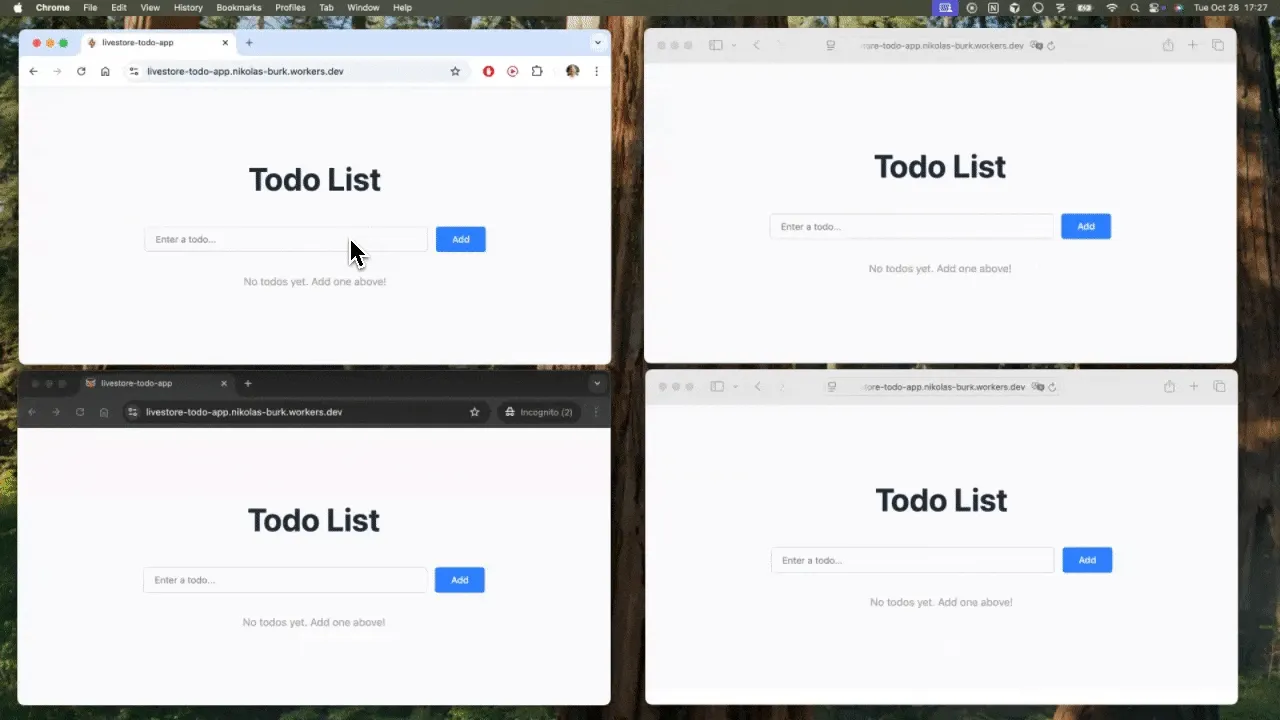

Here’s a GIF demonstrating how a regular Chrome tab, an incognito Chrome tab and a Safari tab are staying in sync automatically:
